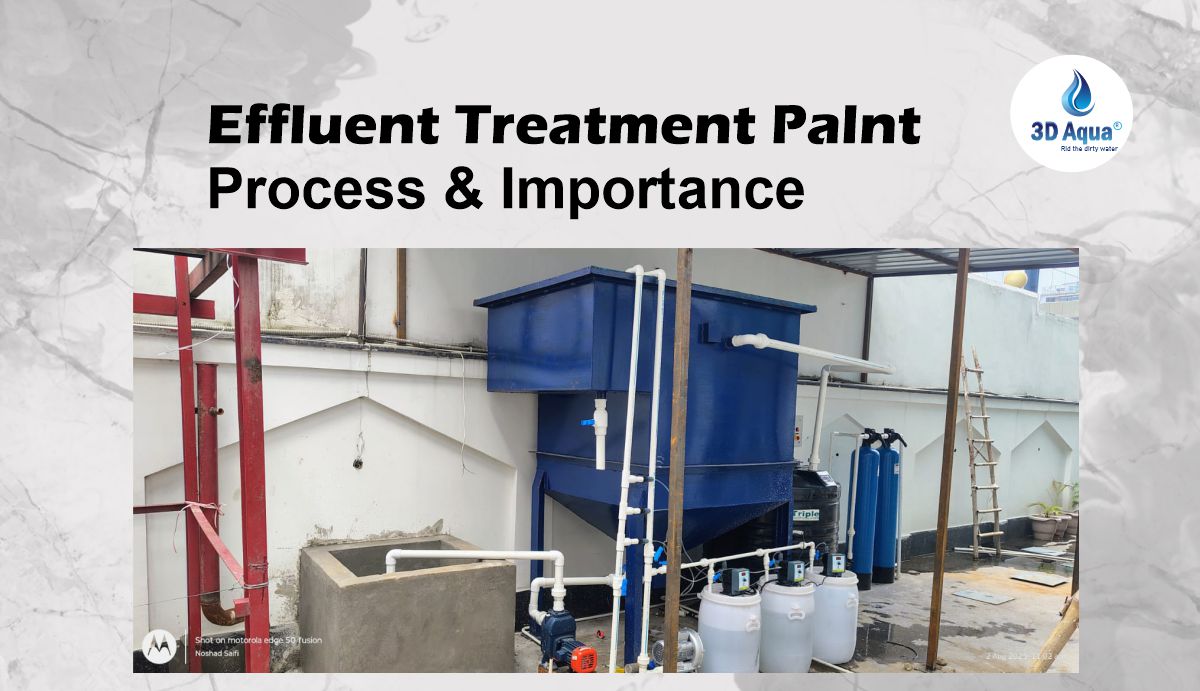

What Is an Effluent Treatment Plant and What Are Its Key Processes?
Industrial growth fuels economies, supports jobs, and enhances convenience in modern life. However, with progress comes responsibility—especially toward the environment. One of the pressing concerns today is the generation of industrial wastewater, which if left untreated, can devastate aquatic ecosystems, public health, and water resources. This is where an Effluent Treatment Plant (ETP) plays a crucial role.
Designed to treat toxic industrial effluents, an ETP ensures that wastewater is purified before being released into the environment or reused within the facility. In this comprehensive article, we explore what an effluent treatment plant is, why it is essential, and what key processes make up the ETP system.
What Is an Effluent Treatment Plant (ETP)?
An Effluent Treatment Plant (ETP) is a wastewater treatment system specifically built to treat effluents (wastewater) generated by industries. These effluents often contain harmful pollutants like chemicals, oils, greases, heavy metals, organic matter, and suspended solids, depending on the type of industry.
The primary aim of an ETP is to:
- Remove toxic elements from wastewater,
- Bring the water quality in compliance with discharge standards, and
- Recycle and reuse the water where feasible.
By using a combination of physical, chemical, and biological processes, ETPs ensure that wastewater becomes safe for discharge into water bodies or suitable for reuse in non-potable applications.
Why Do Industries Need an Effluent Treatment Plant?
1. Environmental Protection
Untreated effluent can:
- Pollute rivers, lakes, and groundwater,
- Destroy aquatic ecosystems,
- Degrade soil quality,
- Lead to biomagnification of toxins in the food chain.
2. Legal Compliance
Governments across the world, including India’s Pollution Control Boards (CPCB & SPCBs), mandate that industries must treat their wastewater to specified levels before discharge. Violations can result in:
- Heavy penalties,
- Operational bans,
- Legal actions.
3. Water Conservation
Treated effluent can be reused for:
- Boiler feed,
- Cooling tower makeup water,
- Landscaping,
- Toilet flushing.
This reduces dependency on fresh water sources and supports sustainability goals.
4. Corporate Social Responsibility
Today’s consumers are environmentally conscious. Having a well-operating ETP boosts a company’s reputation and demonstrates its commitment to sustainability.
Major Industries That Need ETPs
- Textile & Dyeing Units
- Chemical and Fertilizer Plants
- Pharmaceutical Manufacturing
- Food & Beverage Processing
- Pulp and Paper Mills
- Oil Refineries and Petrochemical Plants
- Metal Finishing and Electroplating
Key Processes in an Effluent Treatment Plant
An ETP functions in phases, each designed to remove specific categories of contaminants from the industrial wastewater. Let’s explore each stage in detail:
1. Preliminary Treatment
This initial stage prepares the effluent for further treatment.
a. Screening:
- Removes large objects like plastics, cloth, wood, and floating debris.
- Protects pumps and pipes from clogging.
b. Grit Removal:
- Sand, gravel, and other heavy inorganic particles are settled in grit chambers.
- Prevents erosion of mechanical parts in later stages.
c. Oil and Grease Trap:
- Separates floating oils and greases using skimming devices or gravity separators.
2. Primary Treatment
This phase focuses on removing suspended solids and some organic matter.
a. Sedimentation:
- Wastewater is retained in primary clarifiers, where solids settle under gravity to form sludge.
- Light particles and scum float to the surface and are removed.
b. Chemical Coagulation and Flocculation:
- Chemicals like alum or ferric chloride are added to bind fine particles into larger flocs.
- These flocs are easier to settle and remove.
3. Secondary Treatment (Biological Treatment)
This is the core process in any ETP, responsible for removing dissolved organic matter.
a. Activated Sludge Process (ASP):
- Air is supplied to the aeration tank, promoting the growth of aerobic bacteria.
- Bacteria consume organic pollutants and convert them into harmless compounds.
b. Moving Bed Biofilm Reactor (MBBR):
- Uses plastic carriers for bacterial growth.
- Offers compact size and higher efficiency, especially for variable load industries.
c. Sequential Batch Reactor (SBR):
- Treats wastewater in timed batches using aeration and settling phases.
d. Trickling Filters or Bio-Towers:
- Wastewater trickles over media colonized by microorganisms that digest organic matter.
After biological treatment, the water goes to a secondary clarifier, where biomass (bacterial sludge) settles out and is either recycled or processed further.
4. Tertiary Treatment (Advanced Treatment)
To make treated water reusable or safe for discharge into sensitive environments, tertiary treatment is required.
a. Filtration:
- Sand filters and activated carbon filters remove fine particles, color, and odor.
b. Nutrient Removal:
- Nitrogen and phosphorus compounds are removed through biological or chemical processes to prevent eutrophication in water bodies.
c. Disinfection:
- UV radiation, chlorination, or ozonation are used to kill pathogens and harmful bacteria.
d. Membrane-Based Treatment:
- Ultrafiltration (UF) and Reverse Osmosis (RO) systems are used for high-purity water recovery, especially in water-scarce regions.
Handling and Disposal of Sludge
The sludge collected from various stages of treatment contains concentrated pollutants and needs safe handling.
a. Thickening:
- Reduces water content from the sludge.
b. Dewatering:
- Belt presses, centrifuges, or filter presses extract more water, making sludge easier to handle.
c. Stabilization and Disposal:
- Sludge is stabilized by digestion or composting.
- Reusable as fertilizer (if non-toxic).
- Hazardous sludge is sent to authorized disposal sites.
Benefits of Installing an Effluent Treatment Plant
✅ Environmental Compliance:
- Meets pollution control standards.
- Avoids penalties and bans.
✅ Protects Natural Resources:
- Prevents pollution of rivers, lakes, and groundwater.
✅ Supports Water Recycling:
- Cuts down fresh water consumption.
- Enhances sustainability metrics.
✅ Cost-Effective in the Long Run:
- Recycled water reduces operational costs.
- Improves ROI with better process efficiency.
✅ Improves Brand Image:
- Demonstrates environmental responsibility.
- Enhances investor and public confidence.
ETP vs STP: What’s the Difference?
| Feature | Effluent Treatment Plant (ETP) | Sewage Treatment Plant (STP) |
|---|---|---|
| Type of Waste | Industrial Wastewater | Domestic/municipal sewage |
| Contaminants | Chemicals, heavy metals, oils | Organic waste, human waste |
| Complexity | Higher due to toxic substances | Comparatively lower |
| Technologies | ASP, MBBR, SBR, RO, ACF | ASP, MBBR, SBR, UV |
| Final Use | Discharge or reuse in industry | Gardening, flushing, discharge |
Role of 3D Aqua in ETP Installation
At 3D Aqua Water Treatment Company, we specialize in designing, manufacturing, and installing fully customized ETPs for every industrial sector. Our ETP systems are:
- ISO-certified for quality and performance,
- Compliant with CPCB & SPCB norms,
- Tailored for Zero Liquid Discharge (ZLD) if required,
- Scalable from 2 KLD to 1000+ KLD capacities.
Our clients range from pharmaceuticals and textiles to food processing and paint manufacturing. We also offer AMC, troubleshooting, and remote monitoring support.
Case Study: 100 KLD ETP for a Textile Unit in Ludhiana
Challenge: High COD, color, and TDS in wastewater from dyeing processes.
Solution by 3D Aqua:
- MBBR + Secondary Clarifier + Pressure Sand Filter + RO + UV
- Achieved 98% reduction in COD and 100% compliance with PCB norms
- Treated water reused in dyeing process and boiler feed
Outcome: Reduced freshwater dependency by 70% and improved ESG ratings.
Conclusion
An Effluent Treatment Plant is more than just an industrial requirement—it’s a critical step toward environmental conservation and sustainable industrial growth. By using a combination of mechanical, biological, and chemical methods, ETPs make it possible to reuse water, reduce pollution, and operate within legal frameworks.
As industries grow and water becomes more precious, having a robust and efficient ETP is not just about compliance—it’s about responsibility. Whether you’re starting a new unit or upgrading an old one, choosing the right technology and expert partner will ensure long-term success.
