Clariflocculator in Wastewater Treatment – Understand

Wastewater treatment is a crucial process for ensuring environmental sustainability and public health. Among the various technologies employed in this field, the clariflocculator stands out as a highly effective and efficient solution. This innovative device combines the processes of clarification and flocculation into a single unit, streamlining operations and improving treatment outcomes.

What is a Clariflocculator?

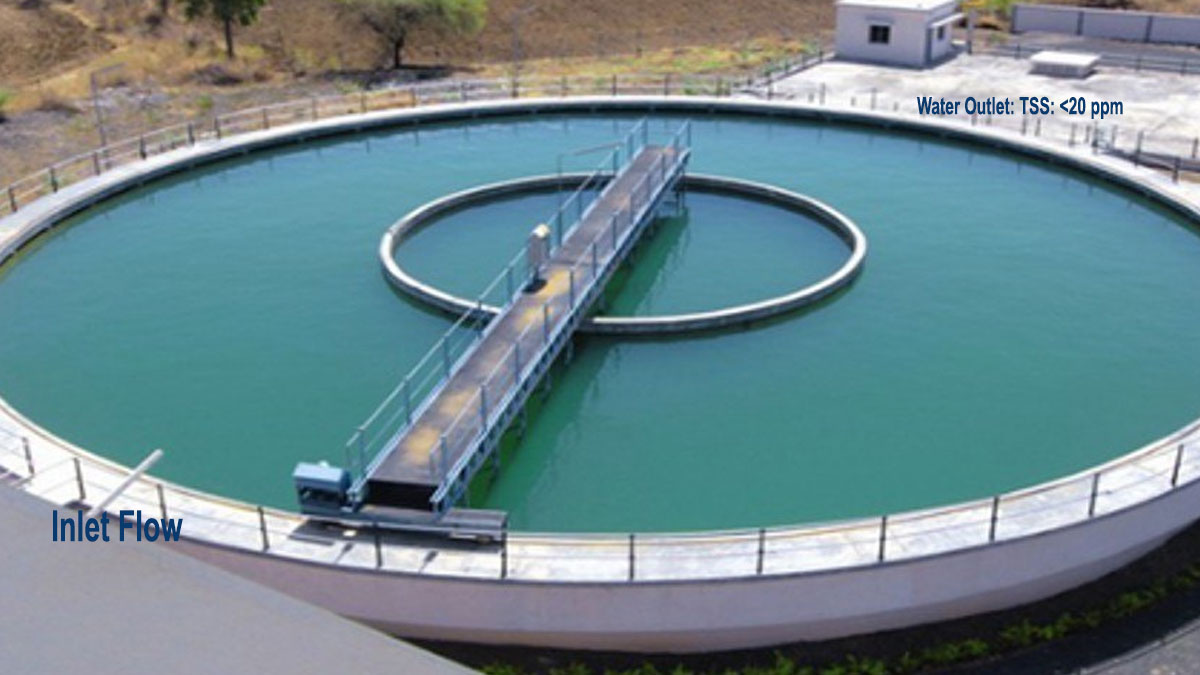

A clariflocculator is a sophisticated piece of equipment used in water treatment plants, designed to facilitate the removal of suspended solids from water. It consists of two concentric tanks: the inner tank functions as a flocculation basin, while the outer tank serves as a clarifier. This dual function allows for enhanced treatment efficiency in a compact design.

How Does It Work?

1. Water Intake: The process begins when wastewater enters the flocculation chamber. This chamber is equipped with flocculating paddles that agitate the water, promoting the collision and aggregation of suspended particles.
2. Flocculation: As the paddles mix the water, chemical coagulants are often added to facilitate the formation of larger flocs. These flocs are clumps of particles that have bonded together, making them easier to remove.
3. Sedimentation: Once flocculation occurs, the water flows into the outer clarifier tank. Here, the heavier flocs settle at the bottom due to gravity. This sedimentation process is critical, as it allows the clear water to rise and flow out.
4. Discharge of Clear Water: The clarified water is then discharged over a peripheral weir, ensuring that only the cleanest water exits the clariflocculator.
5. Sludge Management: The sludge that accumulates at the bottom is scraped into a central pocket and directed into a sludge chamber for further handling and disposal.

Benefits of Using a Clariflocculator

1. Space Efficiency

One of the most significant advantages of a clariflocculator is its compact design. By combining the functions of clarification and flocculation in a single unit, it occupies less physical space compared to traditional setups that require separate tanks.

2. Time-Saving

The integrated design allows for faster treatment times. The streamlined process reduces the overall duration needed for water treatment, which can enhance the throughput of treatment plants.

3. Improved Treatment Efficiency

Clariflocculators are designed to maximize the removal of suspended solids, leading to cleaner effluent. This efficiency is crucial in meeting environmental regulations and ensuring the quality of treated water.

Applications of Clariflocculators

Clariflocculators find application in a variety of settings, including:

• Municipal Water Treatment: Ensuring the delivery of safe and clean drinking water to communities.
• Effluent Treatment Plants (ETPs): Handling wastewater from industrial processes before discharge.
• Heavy Metal Removal: Effective in treating waters contaminated with metals, making it suitable for mining and metallurgical industries.

Types of Clariflocculators

3D Aqua Solutions offers several types of clariflocculators tailored to specific operational needs:

1. Centre-Driven Clariflocculator: Features a central drive mechanism, ideal for larger applications.
2. End-to-End Clariflocculator: Designed for situations where space is limited, providing an efficient treatment solution.
3. Clariflocculator with Full Bridge: Incorporates a full bridge mechanism for enhanced sludge removal and efficiency.
4. Clariflocculator with Half Bridge: A more compact version, suitable for smaller treatment plants or specific applications.

The Working Principle of Clariflocculators

The operational effectiveness of clariflocculators hinges on three primary processes:

1. Coagulation: The introduction of coagulants to destabilize suspended particles, leading them to bond together.
2. Flocculation: Gentle mixing aids in forming larger flocs that can easily settle.
3. Sedimentation: Gravity helps separate the flocs from the clear water, allowing for efficient discharge of treated effluent.

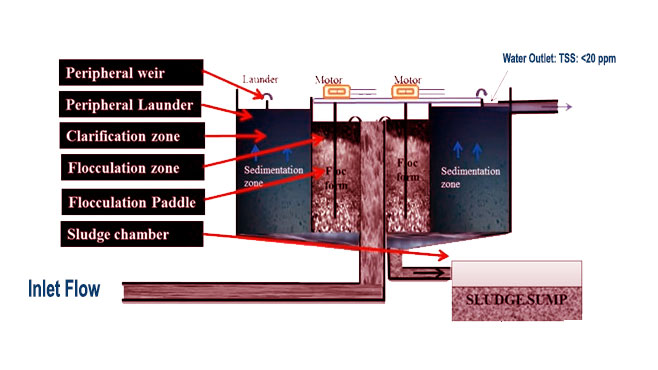

Process Flow of a Clariflocculator

The process flow within a clariflocculator is straightforward yet effective:

1. Water Inflow: Raw water enters the flocculation chamber.
2. Flocculation: Flocculating paddles mix the water, promoting particle aggregation.
3. Settling: Heavier particles settle to the bottom, while the clearer water rises to the top.
4. Clarification: The clarified water is released through the peripheral weir.
5. Sludge Removal: Accumulated sludge is scraped to the bottom and removed for further processing.

Advantages Over Conventional Equipment

The clariflocculator offers several advantages over traditional wastewater treatment methods:

• Reduced Footprint: Its design minimizes the space required for installation.
• Faster Processing: The combination of flocculation and clarification in one unit leads to quicker treatment cycles.
• Higher Efficiency: Enhanced removal rates of solids contribute to improved effluent quality.

Why Choose 3D Aqua for Clariflocculators?

3D Aqua Water Treatment Company is a leading manufacturer of wastewater treatment solutions in India. Our clariflocculators are designed to meet the diverse needs of various industries while ensuring reliability and performance.

3D Aqua Water Treatment Company is an ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, MSME and CE Certified Company. It is a leading prime Manufacturer, Exporter,Trader, Supplier, Spare Parts and Service Provider of world class Industrial RO Plant, Domestic Water Softener, Industrial Water Softener, Sewage Treatment Plant (STP), Effluent Treatment Plant (ETP), Sand Filters, Activated Carbon Filter, DM Plant, Salt Tablets, etc.

Customer-Centric Approach

We pride ourselves on our commitment to customer satisfaction. Our team is dedicated to helping you determine the best solution for your water and wastewater treatment needs. With 24×7 customer support, we ensure that you receive the assistance you need, whenever you need it.

Customization Options

Understanding that each application is unique, we offer custom-designed clariflocculators tailored to specific operational requirements. This flexibility ensures optimal performance and efficiency.

Industry Recognition

As a trusted name in the industry, we have garnered positive reviews for our work quality and client satisfaction. Our portfolio includes commercial RO plants, industrial RO plants, sewage treatment plants, water softener plants, and effluent treatment plants.

Conclusion

The clariflocculator represents a significant advancement in wastewater treatment technology. By integrating clarification and flocculation into a single unit, it not only enhances treatment efficiency but also reduces space requirements and processing time.

Whether for municipal water treatment, industrial applications, or heavy metal removal, clariflocculators are versatile solutions that contribute to cleaner water and a healthier environment.

If you have any questions or need assistance in designing a clariflocculator for your specific needs, feel free to contact 3D Aqua at +91-8963089630 or email us at info@3daqua.in or Visit to Online to know more. Our team is ready to guide you through the process and help you find the ideal solution for your water treatment requirements.
