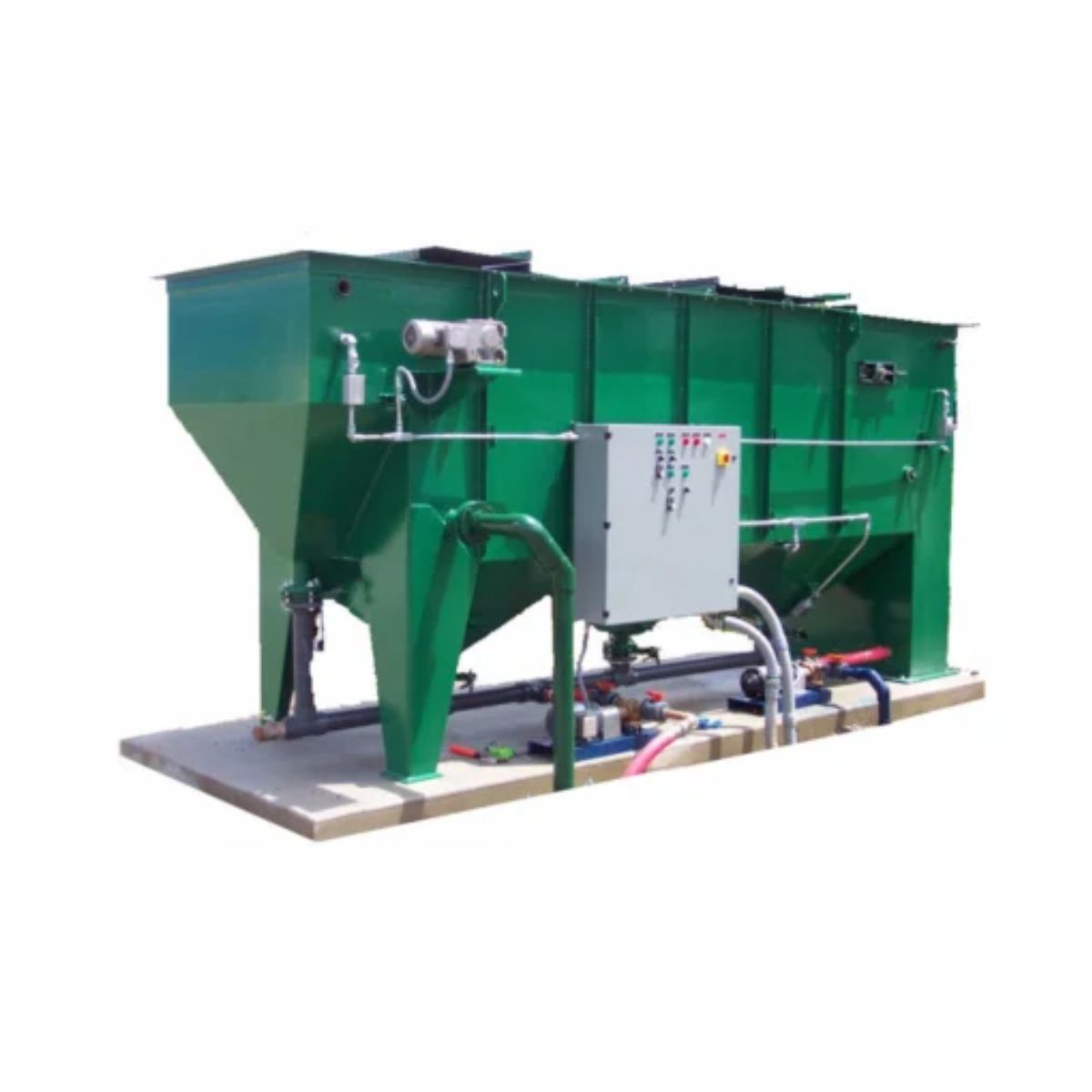

100 KLD STP Plant

Description

In today’s rapidly urbanizing world, the need for efficient and sustainable wastewater treatment solutions is more critical than ever. One of the most vital components of this environmental responsibility is a Sewage Treatment Plant (STP). Specifically, a 100 KLD STP plant is ideal for medium to large-scale residential colonies, hotels, commercial complexes, educational institutions, and industrial parks.

This guide explores every aspect of a 100 KLD STP – from its working process and specifications to pricing, benefits, and why 3D Aqua stands out as the leading manufacturer of sewage treatment plants in India.

---

What is a 100 KLD STP Plant?

A 100 KLD STP (Kilo Litres per Day) sewage treatment plant is designed to treat up to 100,000 liters of wastewater daily. This includes domestic sewage from toilets, kitchens, and bathrooms, along with commercial effluents. The treated water can be safely reused for gardening, flushing, cooling towers, and discharged in compliance with pollution control norms.

This capacity is especially suitable for:

• Residential complexes with 200–300 apartments

• Commercial office spaces or malls

• Educational institutions or hostels

• Hotels and resorts with medium occupancy

• Industrial units generating domestic sewage

---

Working Process of 100 KLD Sewage Treatment Plant

The STP operates in multiple stages to effectively remove organic and inorganic contaminants from sewage. The core stages include:

1. Preliminary Treatment

• Screening of large solids, plastics, and rags.

• Grit removal chamber for sand and heavy particles.

2. Primary Treatment

• Settling of suspended solids in a primary sedimentation tank.

• Removal of scum and sludge from the surface and bottom.

3. Secondary Treatment (Biological Treatment)

• Activated Sludge Process (ASP) or MBR Technology (Membrane Bioreactor).

• Aeration tanks support microbial digestion of organic matter.

• Clarifiers for settling of biomass and treated water separation.

4. Tertiary Treatment

• Filtration through pressure sand filters (PSF) and activated carbon filters (ACF).

• Disinfection using UV or chlorination to ensure pathogen-free output.

5. Sludge Handling

• Sludge thickening and dewatering through filter presses.

• Safe disposal or use in manure production.

---

Technical Specifications of 100 KLD STP Plant

Below are typical specifications for a standard 100 KLD STP using MBBR or ASP technology:

• Treatment Capacity: 100 KLD (100,000 liters per day)

• Technology: MBBR / MBR / SBR / ASP based on application

• Inlet BOD: ~300 mg/L

• Outlet BOD: <10 mg/L (as per PCB norms)

• Treated Water Quality: Suitable for reuse in non-potable applications

• Power Requirement: 7.5 kW to 12 kW (depending on technology)

• Area Required: Approx. 120–150 sq.m.

• Material of Construction: RCC, FRP, or MSEP tanks

---

6 Key Specifications – Bullet Points

• 💧 Capacity: 100 KLD (100,000 liters/day)

• ⚙️ Treatment Method: MBBR / ASP / SBR / MBR (customizable)

• 🌿 Treated Water Output: BOD < 10 mg/L, suitable for gardening & reuse

• 🧱 Construction Material: FRP / RCC / MS – depending on client needs

• 🔌 Power Consumption: Approx. 7.5–12 kW

• 📐 Area Requirement: 120–150 sq.m. with modular skid-mounted options available

---

Advantages of Installing a 100 KLD STP Plant

✅ Environmental Protection

It reduces the pollution load on nearby water bodies and conserves freshwater by recycling treated sewage.

✅ Regulatory Compliance

Meeting CPCB and State Pollution Control Board standards is mandatory for many commercial and residential developments.

✅ Cost Efficiency

Treated sewage can be reused, reducing water bills and overall freshwater dependency.

✅ Compact Design

Modern 100 KLD plants are modular, compact, and easy to install even in space-constrained areas.

✅ Low Maintenance

Plants manufactured by 3D Aqua come with advanced automation, making them easy to operate with minimal human intervention.

✅ Sustainability

Recycling wastewater supports water conservation, an essential aspect of green building certifications like IGBC and LEED.

---

Applications of 100 KLD STP Plant

This plant capacity is highly versatile and used in various sectors, including:

• 🏢 Residential Apartments & Townships

• 🏨 Hotels & Hospitality Industry

• 🏫 Colleges, Schools & Universities

• 🏭 Industrial Estates

• 🛒 Shopping Malls & Retail Complexes

• 🏛️ Government Buildings

---

100 KLD STP Plant Size

The space required for a 100 KLD STP can vary depending on:

• The technology chosen (ASP, MBBR, MBR, etc.)

• Tank construction (RCC, FRP, modular units)

• Layout flexibility and integration with site constraints

On average, 120–150 square meters is required for the plant, including tanks, aeration systems, clarifiers, and filters.

Note: 3D Aqua also offers containerized plug-and-play STPs that take up less space and are ideal for quick deployment.

---

100 KLD STP Plant Price in India

The price of a 100 KLD sewage treatment plant depends on multiple factors:

• Technology used (ASP is economical, MBR is premium)

• Civil vs skid-mounted plant

• Automation level (manual, semi-auto, fully auto)

• Material (FRP tanks are cost-effective, RCC is long-lasting)

💰 Estimated Price Range:

• ₹12 lakhs to ₹25 lakhs (subject to site conditions, customization & tech)

Note: 3D Aqua provides competitive prices along with warranty, AMC (Annual Maintenance Contract), and installation support.

---

Why Choose 3D Aqua as Your STP Plant Manufacturer?

3D Aqua has earned a solid reputation as one of the most reliable and customer-focused wastewater treatment plant manufacturers in India. Their strengths include:

🌟 Proven Industry Experience

Years of hands-on success across residential, industrial, and commercial water treatment projects.

🛠️ Custom Solutions

They offer tailor-made designs based on site conditions, capacity needs, and end-use applications.

⚡ High Efficiency

All plants are built to optimize energy usage and maximize treatment efficiency with a compact footprint.

🧑‍🔧 Technical Support

From layout planning to installation, 3D Aqua offers full end-to-end support with AMC and remote troubleshooting options.

📈 Scalable & Modular

Plants can be scaled up or modified as per demand changes over time.

---

Services Offered by 3D Aqua

• STP Design, Supply, Installation & Commissioning

• Containerized & Modular STP Units

• Annual Maintenance Contracts (AMC)

• Upgradation of Old STP Systems

• Consultancy for Environmental Clearance

• Custom RO, ETP, and ZLD Solutions

---

Contact 3D Aqua – Leading Sewage Treatment Plant Manufacturer in India

If you are planning to install a 100 KLD STP plant for your residential society, hotel, or institution, reach out to the trusted experts at 3D Aqua.

📞 Contact Details:

• Phone: +91-6262629090

• Email: info@3daqua.in

• Website: www.3daqua.in

Let us help you with end-to-end water treatment solutions for a cleaner, greener future.

---

Conclusion

The 100 KLD STP plant offers an ideal wastewater treatment solution for mid-to-large scale establishments. It ensures eco-friendly operations, meets government compliance, and provides cost-effective water recycling options. When you choose a manufacturer like 3D Aqua, you’re guaranteed quality, performance, and sustainability.

With 3D Aqua’s expertise and your commitment to water conservation, building a smart and eco-conscious infrastructure becomes easier than ever. Reach out today to find the perfect sewage treatment solution tailored to your needs.
