20 kld stp plant

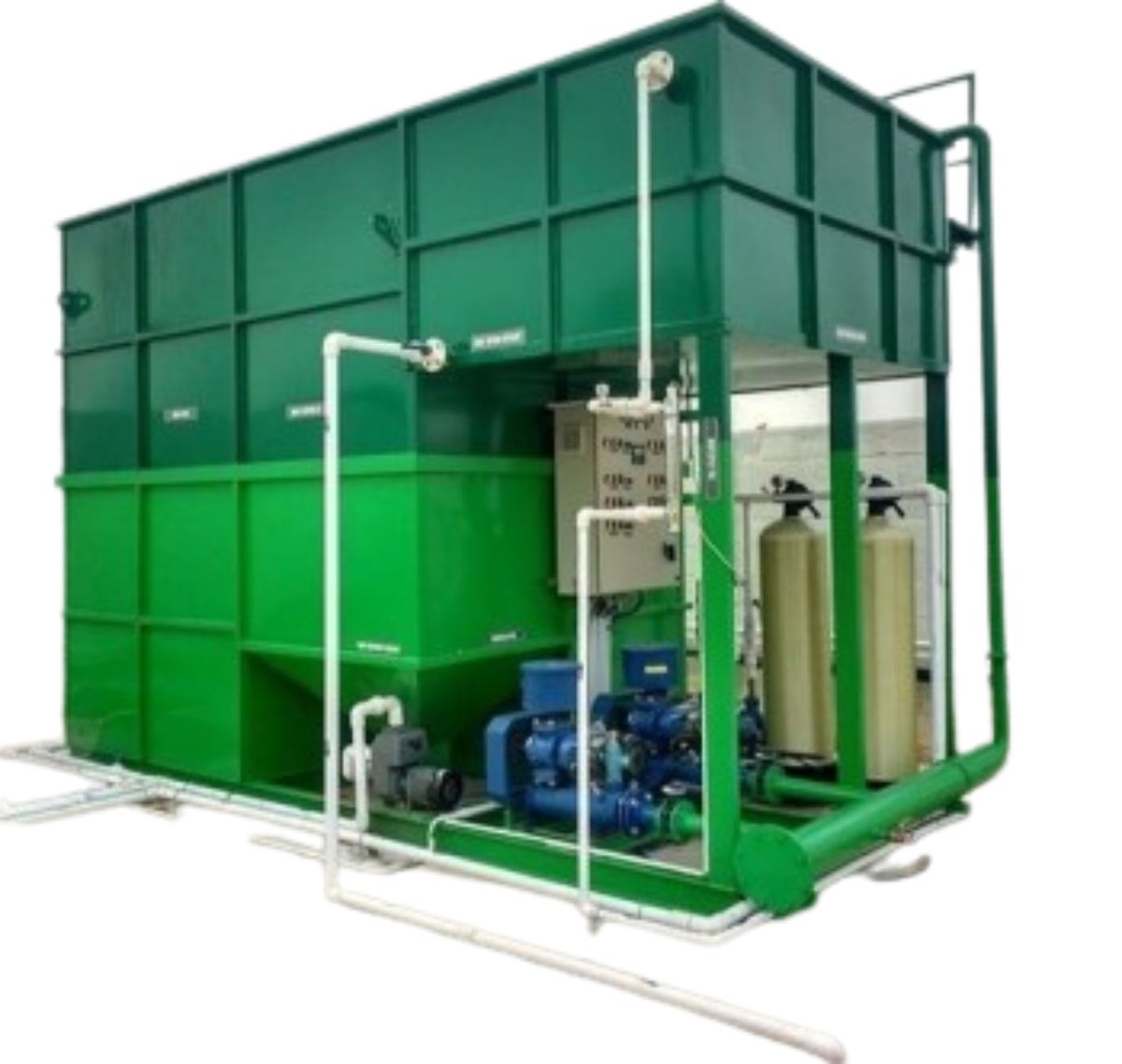

20 KLD STP Plant

Original price was: ₹750,000.00.Current price is: ₹600,000.00.

  • ✅ Treatment Capacity: 20,000 liters per day (20 KLD) – ideal for housing societies, schools, small industries, and hotels.
  • ✅ Technology Used: Available in MBBR, FAB, SBR, or MBR configurations depending on site needs and budget.
  • ✅ Effluent Quality: BOD < 10 mg/L, COD < 50 mg/L – meets CPCB norms for discharge or reuse.
  • ✅ Construction Options: RCC (civil), FRP, or MS skid-mounted design – suitable for underground or overground setup.
  • ✅ Power Consumption: Efficient operation with 5–7 HP load depending on automation and pump capacity.
  • ✅ Automation: Optional PLC/SCADA control panel with IoT-based remote monitoring and fault alerts.

For Quotation Call Us : +91 626262 9090

Category: Brand:

Description

20 KLD Sewage Treatment Plant – Complete Guide

In today’s world, sustainable water management is crucial. With increasing urbanization, the need to treat wastewater efficiently has become more important than ever. A 20 KLD STP (Sewage Treatment Plant) is ideal for small to medium-sized residential societies, schools, commercial buildings, and industrial setups. It offers a compact, cost-effective, and eco-friendly solution for treating domestic and institutional wastewater.

This guide explores everything you need to know about the 20 KLD STP Plant—its working, design specifications, applications, benefits, price, and why 3D AQUA is your best partner for reliable wastewater solutions.

✅ What is a 20 KLD STP Plant?

A 20 KLD STP plant refers to a sewage treatment unit with a treatment capacity of 20 kiloliters per day (20,000 liters/day). It is designed to process and treat domestic wastewater, converting it into water that is safe for reuse or discharge into the environment.

These plants typically use MBR (Membrane Bioreactor), MBBR (Moving Bed Biofilm Reactor), FAB (Fluidized Aerobic Bed), or SBR (Sequencing Batch Reactor) technologies to ensure effective breakdown and removal of biological and chemical contaminants.

📐 20 KLD STP Plant Size & Design

The physical size of a 20 KLD STP plant depends on the type of technology used, space availability, and treatment standards. Here’s a general estimate for MBBR-based systems:

  • Total Area Required: Approx. 1000–1200 sq. ft.

  • Tank Sizes:

  • Equalization Tank: 5 KL
  • Aeration Tank: 10 KL
  • Settling Tank: 6 KL
  • Chlorine Contact Tank: 2 KL
  • Sludge Holding Tank: 3 KL

  • Material Options:

  • RCC (Reinforced Cement Concrete)
  • FRP (Fiber Reinforced Plastic)
  • MS (Mild Steel) with epoxy coating

Modular STP systems from 3D Aqua can also be customized for underground or overground installations.

💰 20 KLD STP Plant Price in India

The price of a 20 KLD sewage treatment plant depends on the type of technology, civil work, automation level, and material used. Below is a rough estimate:

  • Starting Price Range: ₹8,50,000 to ₹12,00,000 (INR)
  • With Advanced Automation (PLC, SCADA, IoT): ₹13,00,000 to ₹16,00,000
  • Cost per liter: Approx. ₹40–₹60/liter/day capacity

Note: Prices may vary based on site location, transportation, installation, and GST.

⚙️ 20 KLD STP Plant – Technical Specifications

Here are the typical technical specifications of a 20 KLD STP plant by 3D Aqua:

  • Capacity: 20,000 liters/day
  • Technology Used: MBBR/FAB/SBR/MBR
  • Input BOD: 250-300 mg/L
  • Output BOD: < 10 mg/L
  • Power Requirement: 5–7 HP
  • Automation: Semi-Automatic/PLC Controlled
  • Sludge Handling: Sludge drying beds or mechanical dewatering
  • Effluent Reuse: Gardening, toilet flushing, landscaping, construction

🔍 Working Process of a 20 KLD STP

  1. Preliminary Treatment:

  • Screening and removal of large solids
  • Grit chamber for sand and gravel removal

  1. Primary Treatment:

  • Settling of suspended solids
  • Oil and grease separation

  1. Secondary Treatment (Biological):

  • Aerobic degradation of organic matter using microorganisms
  • Technologies like MBBR, SBR, or MBR used here

  1. Tertiary Treatment:

  • Filtration, disinfection (chlorination/UV)
  • Polishing to meet reuse or discharge standards

  1. Sludge Treatment:

  • Sludge thickening and drying
  • Safe disposal or use as compost

🏢 Applications of 20 KLD STP Plant

The 20 KLD STP plant is perfect for:

  • Residential Apartments and Housing Colonies
  • Schools, Colleges, and Hostels
  • Small Hospitals and Clinics
  • Commercial Buildings and Malls
  • Office Complexes and IT Parks
  • Hotels and Restaurants
  • Small Factories and Industrial Units
  • Educational Institutes and Training Centers

🌟 Key Features and Benefits

Here are 6 key benefits of choosing a 20 KLD STP from 3D Aqua:

  • ✅ Compact and Modular Design: Easy to install even in limited spaces
  • ✅ Low Maintenance: Designed for long operational life with minimal upkeep
  • ✅ Energy-Efficient Operation: Optimized power consumption
  • ✅ High-Quality Treated Water: Output meets CPCB norms
  • ✅ User-Friendly Interface: Optional PLC-based control panels
  • ✅ Environmentally Friendly: Reduces pollution and supports water reuse

🧪 Effluent Quality Parameters (As Per CPCB Norms)

Parameter Influent Effluent (After Treatment)
BOD (mg/L) 250-300 < 10
COD (mg/L) 400-500 < 50
TSS (mg/L) 200-250 < 20
pH 6.5–8.5 6.5–8.5
Fecal Coliform High Nil or < 100 MPN/100 mL

📞 Why Choose 3D AQUA for 20 KLD STP Plant?

3D AQUA is one of India’s most trusted wastewater treatment plant manufacturers with a wide range of experience across sectors. Here’s why customers prefer us:

  • ✔️ ISO-certified manufacturing
  • ✔️ Expert engineering and design
  • ✔️ Customized solutions for every site
  • ✔️ Quick installation and reliable AMC
  • ✔️ Support in civil works and plumbing
  • ✔️ Pan-India delivery and service

We have successfully delivered projects across Meerut, Ghaziabad, Noida, Gurgaon, Faridabad, Aligarh, Bulandshahr, Mathura, and more.

📦 Optional Add-ons

  • IoT-enabled monitoring
  • Online water quality sensors
  • Treated water storage and booster pumps
  • UV disinfection units
  • STP odor control systems
  • STP containerized units (plug and play)

🌱 Reuse Possibilities of Treated Water

Treated water from the 20 KLD STP can be reused for:

  • Landscaping and gardening
  • Car washing
  • Flushing in toilets
  • Floor cleaning
  • Cooling tower makeup
  • Construction activities

This helps reduce freshwater usage and supports sustainable development goals (SDGs).

🛠️ Installation & Maintenance

Installation Time: 3–4 weeks (including civil, mechanical, and electrical)

Operation & Maintenance Tips:

  • Regular sludge removal (weekly or as per use)
  • Cleaning screens and pumps
  • Monitor BOD/COD levels
  • Monthly servicing by trained staff

3D Aqua offers annual maintenance contracts (AMCs) for hassle-free operations.

📞 Contact 3D AQUA for Your 20 KLD STP Needs

Looking to install a reliable and affordable 20 KLD Sewage Treatment Plant for your premises? We’re here to help with expert design, installation, and support.

Contact Us:

📞 Phone: +91-6262629090
📧 Email: info@3daqua.in
🌐 Website: www.3daqua.in

✅ Summary

A 20 KLD STP Plant is the perfect solution for residential, institutional, and commercial applications with moderate sewage generation. With efficient biological treatment processes, compact design, and low energy requirements, it offers both economic and environmental benefits. 3D AQUA provides cutting-edge STP solutions with complete support—from design to installation and beyond.

Make the right move towards water conservation and environmental responsibility with 3D Aqua’s 20 KLD STP solutions today!
