Sale!

Buy Best 5 KLD ETP Plant

Original price was: ₹410,000.00.Current price is: ₹250,000.00.

3D AQUA’s 5 KLD ETP Plant treats 5000 L/day of industrial wastewater using multi-stage purification. CPCB compliant, durable, and ideal for textiles, pharma, and food industries.

Category: Brand:

Description

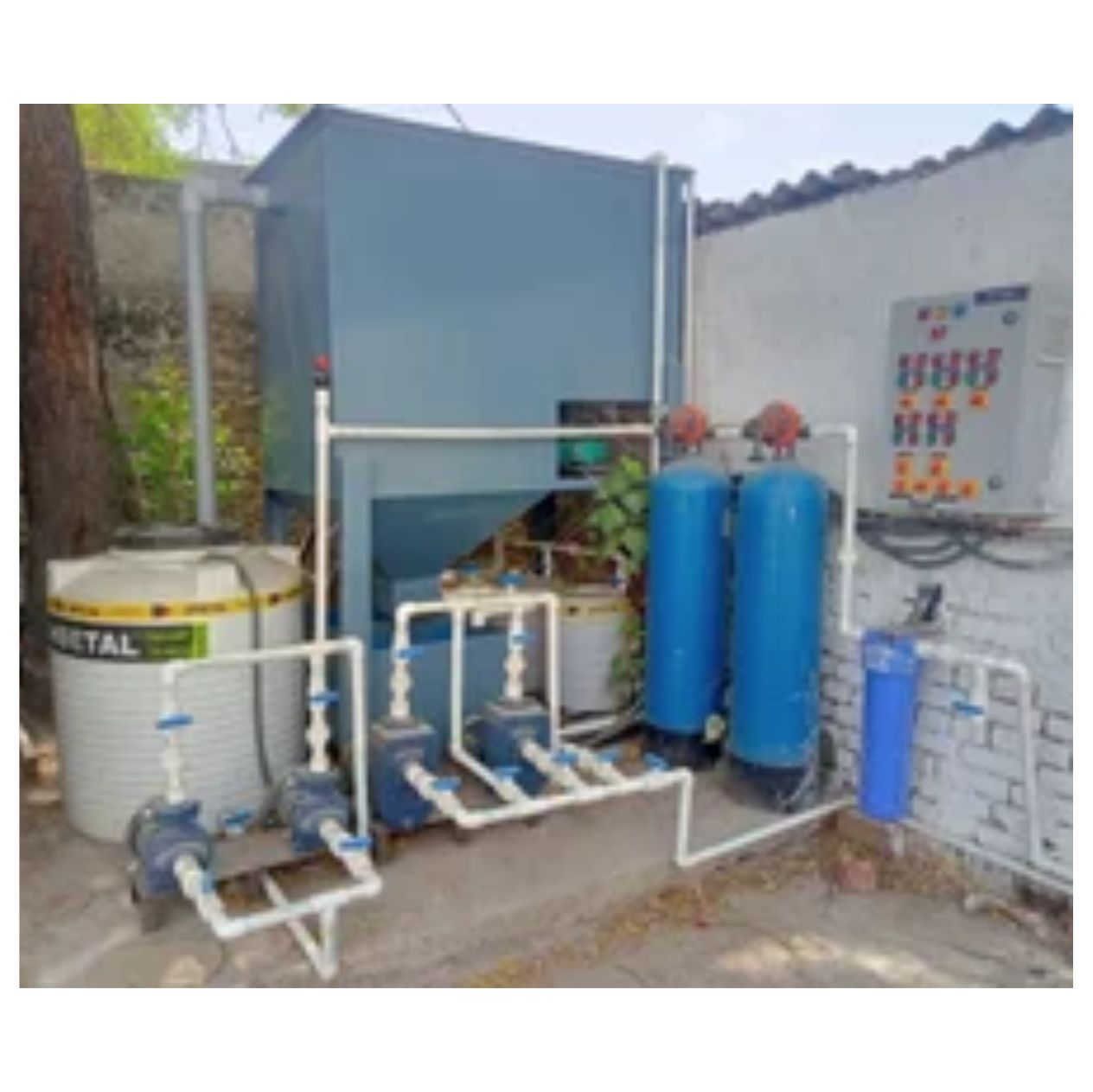

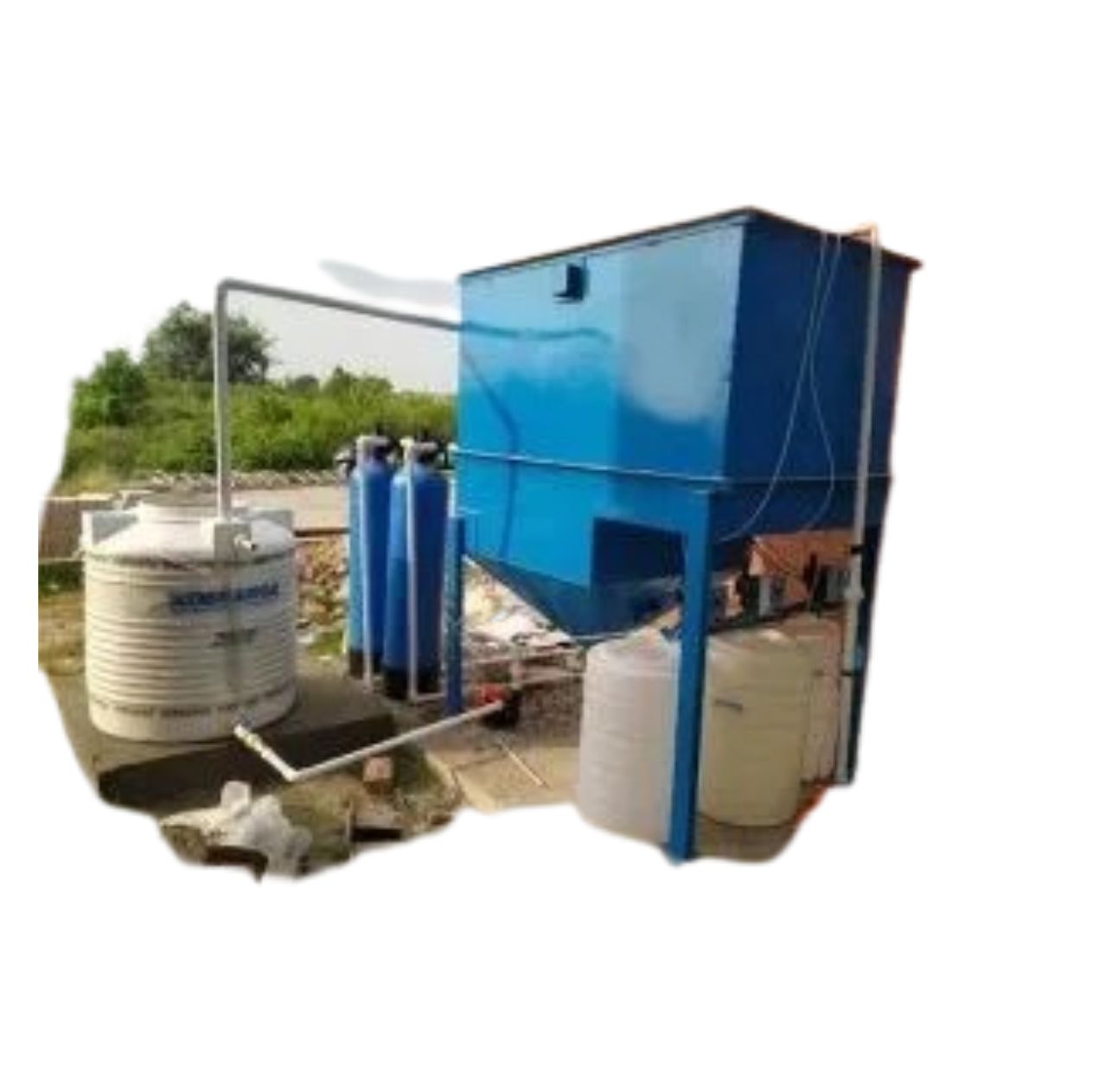

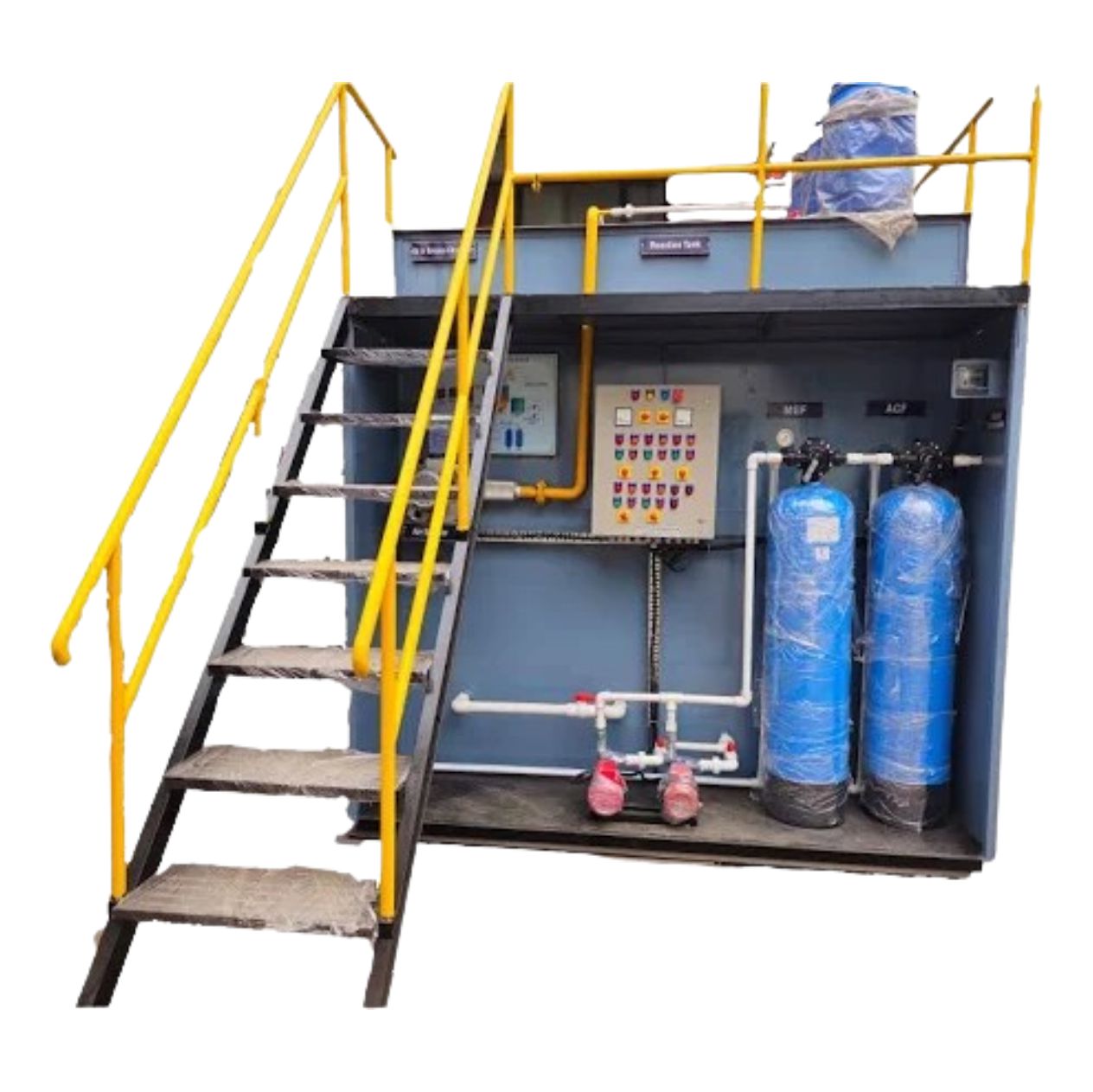

The 5 KLD Effluent Treatment Plant (ETP) by 3D AQUA Water Treatment Company is a robust and high-performance wastewater treatment system designed to treat up to 5000 liters of industrial effluent per day. It is ideal for medium-scale industries that require efficient wastewater treatment to meet Central Pollution Control Board (CPCB) standards for discharge or reuse.

With over 1050+ successful installations in 9 countries, 3D AQUA offers a compact, durable, and cost-effective 5 KLD ETP system that is engineered for industries such as textiles, pharmaceuticals, food processing, chemicals, tanneries, automotive, and paper manufacturing.

Generated image


Why Choose the 3D AQUA 5 KLD ETP Plant?

  • High Treatment Capacity – Handles 5000 liters/day with consistent quality output.
  • Multi-Stage Purification – Removes physical, chemical, and biological contaminants.
  • Compact Modular Design – Space-saving and easy to install.
  • Energy-Efficient Operation – Low power consumption for reduced costs.
  • Long Service Life – Built with premium-grade materials for durability.
  • Compliance Guaranteed – Meets CPCB & SPCB regulations in India.

5 KLD ETP Plant Technical Specifications

Parameter Details
Capacity 5,000 Liters per Day (5 KLD)
Treatment Technology Primary, Secondary & Tertiary Treatment (Physico-Chemical + Biological Processes)
Power Requirement 3–5 HP
Material of Construction Mild Steel (Anti-Corrosive Coated) / FRP / RCC
Automation Level Semi-Automatic / Fully Automatic (Optional)
Compliance CPCB & SPCB Norms
Output Water Quality Suitable for discharge or reuse
Design Life 12–15 years with proper maintenance

Treatment Process – How the 5 KLD ETP Plant Works

The 5 KLD ETP uses a multi-stage process to ensure safe and eco-friendly wastewater treatment:

1. Primary Treatment

  • Screening Tank – Removes large debris, plastics, and solids.
  • Oil & Grease Trap – Eliminates free-floating oils and grease.
  • Equalization Tank – Stabilizes flow and pollutant concentration.
  • Coagulation & Flocculation – Uses chemicals to bind fine suspended particles.
  • Primary Clarifier – Settles out sludge from water.

2. Secondary Treatment

  • Biological Aeration Tank – Microorganisms break down organic matter (BOD/COD reduction).
  • Secondary Clarifier – Removes biomass and suspended solids.

3. Tertiary Treatment

  • Pressure Sand Filter (PSF) – Eliminates fine particles.
  • Activated Carbon Filter (ACF) – Removes odor, color, and residual chemicals.
  • Disinfection Unit (UV/Chlorination) – Kills harmful bacteria before discharge.

Process Flow Diagram

(Graphical diagram showing: Inlet Wastewater → Screening → Oil & Grease Trap → Equalization → Coagulation/Flocculation → Primary Clarification → Aeration → Secondary Clarification → Sand Filtration → Carbon Filtration → Disinfection → Treated Water Outlet)


Key Benefits

  • CPCB-Compliant Effluent Quality – Avoids environmental penalties.
  • Water Reuse Potential – Treated water suitable for gardening, floor cleaning, and cooling towers.
  • Low Maintenance Requirement – User-friendly design for continuous operation.
  • Customizable Design – Adaptable for different industrial waste characteristics.
  • Cost-Effective – Reduces water procurement and disposal costs.

Applications

  • Textile & Dyeing Units – Removes dyes and color.
  • Pharmaceutical Units – Treats high COD/BOD effluent.
  • Food & Beverage Processing – Removes organic matter and fats.
  • Chemical Manufacturing – Neutralizes hazardous chemicals.
  • Automobile Workshops – Removes oil, grease, and suspended particles.

Why 3D AQUA?

  • Trusted Manufacturer – Over a decade of experience in wastewater solutions.
  • Certified Quality – ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, CE Certified.
  • Expert Installation – From design to commissioning with after-sales support.
  • In-House Manufacturing Units – Located in Okhla (Delhi) and Noida (UP) for faster delivery.

Order Your 5 KLD ETP Plant Today
Upgrade your wastewater management with 3D AQUA’s advanced 5 KLD ETP Plant. Ensure compliance, reduce costs, and contribute to a cleaner environment.
