Understanding Transmembrane Pressure in Membrane Filtration Systems

What is transmembrane pressure and how it is calculated

Membrane filtration technology plays a critical role in various industries, including water treatment, food processing, pharmaceutical production, and many others. This technology uses synthetic membranes to separate different substances in a liquid or gas mixture. These membranes help isolate specific components by allowing certain particles or molecules to pass through while retaining others.

A key factor influencing the efficiency and performance of membrane filtration systems is transmembrane pressure (TMP). In this article, we will discuss what transmembrane pressure is, how it impacts filtration, how it is calculated, and why it is crucial for maintaining membrane performance and avoiding common problems like fouling and concentration polarization.

What is Transmembrane Pressure (TMP)?

Transmembrane pressure (TMP) is the difference in pressure between the feed solution (the liquid entering the membrane system) and the permeate solution (the liquid that passes through the membrane). TMP represents the force pushing the liquid through the membrane and is essential for the filtration process. It is one of the most critical parameters to control in membrane filtration systems because it directly impacts the rate of filtration and the quality of the permeate.

TMP is typically measured in units of pressure, such as kilopascals (kPa) or bar. A higher TMP generally increases the filtration rate, as it provides more driving force for the fluid to pass through the membrane. However, excessively high TMP can lead to membrane fouling and other issues that reduce the overall effectiveness of the filtration system.

In membrane filtration systems like reverse osmosis (RO), nanofiltration (NF), ultrafiltration (UF), and microfiltration (MF), maintaining the TMP within an optimal range is essential for efficient operation and long-lasting performance.

The Role of Transmembrane Pressure in Membrane Filtration

Transmembrane pressure is crucial for the membrane filtration process because it governs the movement of water through the membrane and plays a direct role in filtration efficiency. The process is designed to separate substances based on their size, charge, or other properties, but the effectiveness of this separation is heavily dependent on the TMP. Let’s explore the key functions of TMP in membrane filtration:

1. Driving Force for Filtration: TMP acts as the driving force that pushes water and dissolved substances through the membrane. The feed pressure (the pressure applied to the feed solution) must be higher than the permeate pressure (the pressure inside the filtered liquid) for water to pass through the membrane and be separated into permeate and retentate (the material that is retained by the membrane).
2. Impact on Filtration Rate: TMP is directly related to the rate of filtration. A higher TMP can increase the flow rate of the permeate, meaning more water is filtered in a shorter time. However, excessive TMP can lead to problems such as membrane fouling, concentration polarization, and even damage to the membrane structure.
3. Concentration Polarization and Fouling: As feed water passes through the membrane, it leaves behind concentrated material on the surface of the membrane. This phenomenon is known as concentration polarization. High TMP can exacerbate concentration polarization by pushing more solute towards the membrane surface, causing higher concentrations of solutes to accumulate, which can lead to fouling.
4. Membrane Cleaning and Maintenance: Maintaining a stable and optimal TMP helps ensure the membrane remains clean and functional. If the TMP rises too high, it may indicate the presence of fouling or scaling on the membrane surface. Conversely, a drop in TMP may suggest the need for membrane replacement or maintenance. Regular monitoring of TMP allows operators to take corrective action, such as cleaning the membrane, adjusting operating conditions, or replacing the membrane to maintain performance.

Transmembrane Pressure and Membrane Fouling

Membrane fouling is one of the most significant challenges faced by membrane filtration systems. It refers to the accumulation of unwanted materials, such as dirt, organic matter, salts, and microorganisms, on the surface of the membrane. Over time, this buildup can clog the pores of the membrane, reduce flow rates, and increase TMP, eventually leading to membrane failure if not addressed.

Fouling can occur due to various reasons, including:

• Inorganic fouling: Caused by the accumulation of minerals like calcium and magnesium, which can form scale on the membrane surface.
• Organic fouling: Occurs when organic matter such as proteins, fats, and polysaccharides build up on the membrane.
• Biofouling: Caused by the growth of microorganisms like bacteria and algae on the membrane surface.
• Particulate fouling: Caused by the accumulation of suspended solids or particulate matter in the feed solution.

TMP can be an indicator of fouling in the system. If TMP rises above the normal operating range, it could be a sign that fouling has occurred, and the membrane requires cleaning or replacement. Monitoring TMP in real-time can help detect fouling early, allowing for preventive measures such as cleaning protocols or adjustments to operating conditions.

Transmembrane Pressure and Concentration Polarization

Concentration polarization is another phenomenon that affects membrane filtration, particularly when TMP is high. It occurs when the concentration of solutes near the membrane surface becomes significantly higher than in the bulk feed solution. This happens because solutes are retained on the membrane while water continues to pass through, creating a concentration gradient.

At higher TMP, concentration polarization becomes more pronounced. This can reduce the effectiveness of the membrane because the higher solute concentration near the membrane increases the likelihood of fouling, scaling, or clogging. To minimize concentration polarization, operators must adjust TMP and other operating parameters, such as flow rates and feed pressure.

How is Transmembrane Pressure Calculated?

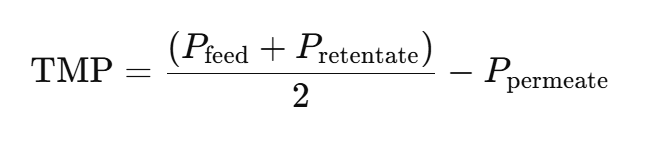

The calculation of TMP is relatively straightforward and involves measuring the pressures in the feed, permeate, and concentrate streams. The basic formula for calculating transmembrane pressure is:

Where:

• P_feed is the pressure of the feed stream (in kilopascals or bar),
• P_ret is the pressure of the retentate stream (the liquid that is not allowed to pass through the membrane),
• P_permeate is the pressure of the permeate stream (the liquid that passes through the membrane).

This formula calculates the difference between the feed and permeate pressures, which gives the TMP. By adjusting the pressure in the feed and permeate streams, operators can optimize TMP to achieve efficient filtration and minimize fouling or concentration polarization.

In addition to the basic formula, real-time monitoring systems can be used to track TMP in membrane filtration systems. Pressure transducers and sensors are installed in the feed, permeate, and concentrate streams to continuously measure pressure and calculate TMP. These systems provide valuable data that allows operators to monitor and adjust the filtration process in real-time, helping to prevent performance issues.

Real-Time Monitoring of TMP

Real-time monitoring of TMP is essential for ensuring the optimal performance of membrane filtration systems. With advanced sensor technologies and automated control systems, operators can track TMP and other key parameters (such as flow rates and temperature) in real time. This allows for the early detection of issues like fouling, concentration polarization, and membrane degradation.

By continuously monitoring TMP, operators can make immediate adjustments to the system to maintain peak performance. For example, if TMP rises too high, they may clean the membrane or adjust the operating conditions to reduce fouling. Conversely, if TMP drops too low, they can adjust the feed pressure or other variables to improve filtration efficiency.

Conclusion

Transmembrane pressure (TMP) is a critical parameter in membrane filtration systems that directly affects filtration efficiency, membrane longevity, and overall system performance. By understanding TMP and its role in the filtration process, operators can optimize their systems for better results and minimize the risks of fouling, concentration polarization, and other performance issues.

Maintaining TMP within the ideal operating range ensures that the membrane remains effective and clean, providing high-quality filtrate. Real-time monitoring of TMP allows operators to make immediate adjustments, preventing costly downtime and maintaining the system’s efficiency.

Whether you’re working with reverse osmosis, ultrafiltration, or any other membrane filtration technology, understanding TMP and how to calculate and monitor it is essential for achieving optimal results. By taking the time to properly manage TMP, you can ensure the long-term success of your membrane filtration system and the high-quality output you need.
