Water is a vital resource for both domestic and industrial use. However, in its natural form, water often contains minerals, metals, and other impurities that can damage equipment, reduce product quality, or pose serious health hazards. One of the most effective methods to treat such water is the Ion Exchange System—a tried and tested solution for water softening, demineralization, and heavy metal removal.
Whether you’re dealing with hard water at home, purifying feed water for a boiler, or treating industrial effluents, an Ion Exchange System provides a reliable, efficient, and customizable solution. This article explores the working principle, features, benefits, and applications of Ion Exchange Systems in both residential and industrial contexts.

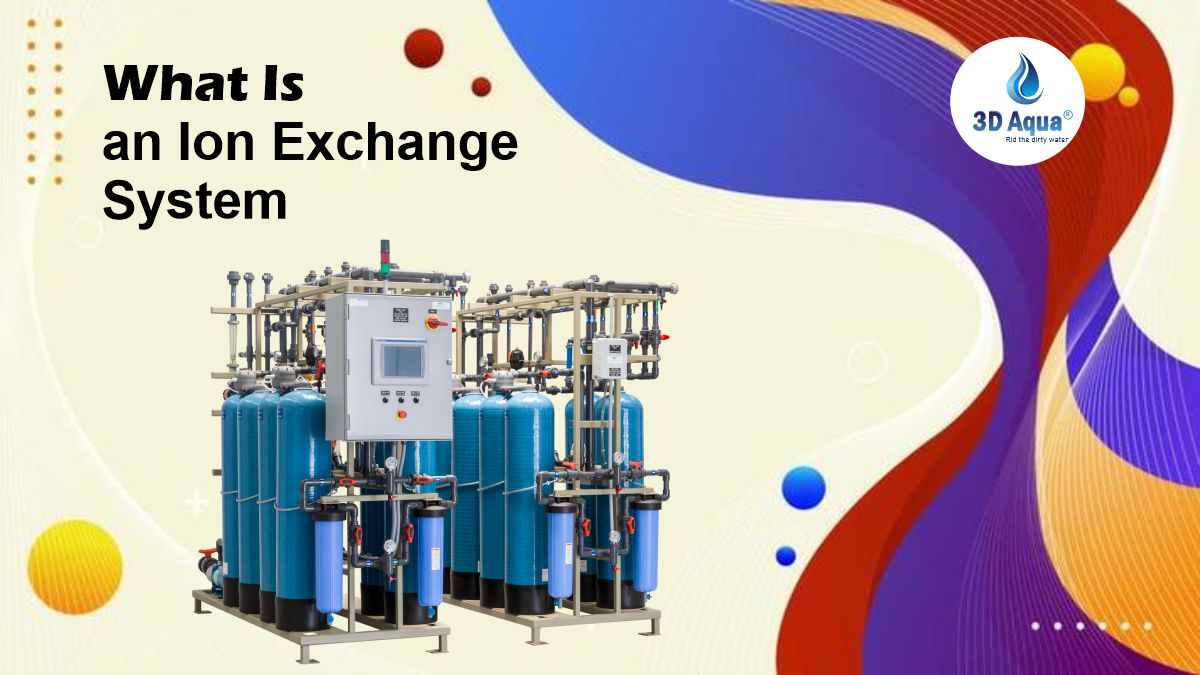

What Is an Ion Exchange System?
An Ion Exchange System is a water purification technique that removes unwanted dissolved ions—such as calcium, magnesium, iron, nitrates, or heavy metals—by exchanging them with less harmful or more desirable ions. The process takes place in a vessel filled with ion exchange resin beads. These resins are specially formulated to attract and bind specific ions from the water and release safer ones in return.
This system is widely used across sectors like:
- Domestic water softening,
- Industrial process water treatment,
- Pharmaceutical-grade water preparation,
- Wastewater recycling and nutrient recovery.
How Does the Ion Exchange Process Work?
The process of ion exchange is both chemical and physical. Here’s how it works:
- Water enters a pressure vessel filled with resin beads.
- As it passes through, the undesirable ions in the water are attracted to and held by the resin.
- In return, the resin releases harmless ions (like sodium or hydrogen) back into the water.
- Over time, the resin becomes saturated with contaminants and must undergo a regeneration process to restore its capacity.
This cycle repeats continuously, ensuring a steady supply of purified water with minimal interruption.
Key Components and Features of an Ion Exchange System
An efficient ion exchange system is more than just a resin bed. It includes several engineered components that work in harmony. Let’s break down the key features:
1. Ion Exchange Resin
Resin beads are the heart of any ion exchange system. These small, porous beads are made from polystyrene or acrylic polymers and are chemically treated to attract and exchange ions.
- Cation Exchange Resins: Attract and replace positively charged ions like calcium (Ca²⁺), magnesium (Mg²⁺), and iron (Fe²⁺).
- Anion Exchange Resins: Attract and replace negatively charged ions like nitrate (NO₃⁻), sulfate (SO₄²⁻), and phosphate (PO₄³⁻).
- Mixed-Bed Resins: Combine cation and anion resins for high-purity applications like laboratory or semiconductor use.
2. Cation vs. Anion Exchange
Understanding the difference is crucial:
| Type | Target Contaminants | Replacement Ions | Application |
|---|---|---|---|
| Cation Exchange | Ca²⁺, Mg²⁺, Fe²⁺, Na⁺ | H⁺ or Na⁺ | Water softening, boiler feed |
| Anion Exchange | NO₃⁻, SO₄²⁻, Cl⁻ | OH⁻ or Cl⁻ | Demineralization, nitrate removal |
Many water treatment setups use a two-step system: cation exchange followed by anion exchange for complete deionization.
3. Regeneration Process
Over time, the resin loses its exchange capacity. At this stage, it undergoes a regeneration process:
- Cation Resins are regenerated using sodium chloride (NaCl) or acid solutions (HCl or H₂SO₄).
- Anion Resins are regenerated using sodium hydroxide (NaOH).
This process restores the resin’s ability to exchange ions and is usually automated using control valves and timers.
4. Control Valves and Monitoring System
Modern systems include:
- Flow meters to measure water output,
- Conductivity sensors to ensure quality,
- Automatic regeneration controls for uninterrupted operation.
Applications of Ion Exchange Systems
Ion exchange systems find application in a wide range of sectors—from household plumbing to advanced industrial operations. Here’s how:
1. Water Softening
Hard water contains high levels of calcium and magnesium, which cause:
- Scale buildup in pipelines,
- Reduced efficiency of water heaters,
- Damage to appliances like washing machines and dishwashers.
Cation exchange resins replace these hard minerals with sodium or potassium, delivering soft water that is gentler on plumbing and skin.
2. Heavy Metal Removal
Industrial wastewater often contains toxic metals like:
- Lead (Pb)
- Copper (Cu)
- Mercury (Hg)
- Chromium (Cr)
These are hazardous to both human health and the environment. Ion exchange selectively captures these contaminants, reducing toxicity before discharge or reuse.
3. Demineralization and Deionization
Some processes, especially in:
- Pharmaceuticals
- Electronics
- Food & Beverage
require ultra-pure water. In such cases, strong acid cation and strong base anion exchangers are used in series to remove all dissolved salts, resulting in high-quality deionized water.
4. Wastewater Recycling
In wastewater treatment, ion exchange is used to:
- Polish treated effluent,
- Remove trace contaminants,
- Make the water fit for reuse in irrigation, cooling towers, or cleaning.
This promotes circular water economy by reducing dependence on freshwater sources.
5. Nutrient Recovery
Certain specialized resins can capture:
- Ammonium (NH₄⁺)
- Phosphate (PO₄³⁻)
These recovered nutrients can be processed into fertilizers, offering an eco-friendly way to convert waste into resources.
Advantages of Ion Exchange Systems
✅ High Efficiency
Removes ions with precision and consistency even at low concentrations.
✅ Customization
Systems can be tailored to specific contaminants and water quality requirements.
✅ Scalable
Suitable for small homes, large factories, or entire municipalities.
✅ Cost-Effective
Once installed, operation and maintenance are relatively low-cost, especially when regeneration is optimized.
✅ Environmentally Friendly
Encourages reuse of water and recovery of valuable elements from waste.
Limitations and Considerations
While ion exchange systems are highly effective, certain precautions must be considered:
- Pre-treatment may be necessary if water has high turbidity or organic content.
- Resin fouling can occur due to iron, oil, or microbial growth.
- Chemical handling during regeneration requires safety protocols.
- Disposal of regeneration waste must follow environmental regulations.
Proper system design, trained operation, and scheduled maintenance are key to long-term performance.
3D Aqua’s Ion Exchange System Solutions
At 3D Aqua Water Treatment Company, we design and manufacture customized Ion Exchange Systems for:
- Domestic softeners,
- Industrial demineralizers,
- Effluent polishing units,
- Nutrient recovery systems,
- Ultra-pure water production.
Our systems are:
- ISO 9001:2015 and CE Certified,
- Available in manual, semi-automatic, and fully automatic models,
- Designed for flow rates from 500 LPH to over 100 KLD.
We offer complete installation, AMC, resin replacement, and technical support for all sectors.
Case Study: Demineralization Plant for a Pharmaceutical Client in Baddi
Problem: High TDS water affecting product quality
Solution: Dual-bed ion exchange system (SAC + SBA) with conductivity monitoring
Result: Achieved <1 µS/cm conductivity, meeting pharmacopeia-grade water standards
Savings: 35% reduction in fresh water usage through internal recycling
Conclusion
The Ion Exchange System stands as a cornerstone in modern water purification and reuse strategies. From softening hard water at home to achieving ultra-pure water in critical industries, this method offers versatility, reliability, and sustainability. Its ability to target specific contaminants, be easily scaled, and support nutrient recovery makes it essential in today’s water-scarce world.
Whether your goal is to improve drinking water, enhance product quality, or promote zero-liquid discharge, an Ion Exchange System could be the perfect solution.
