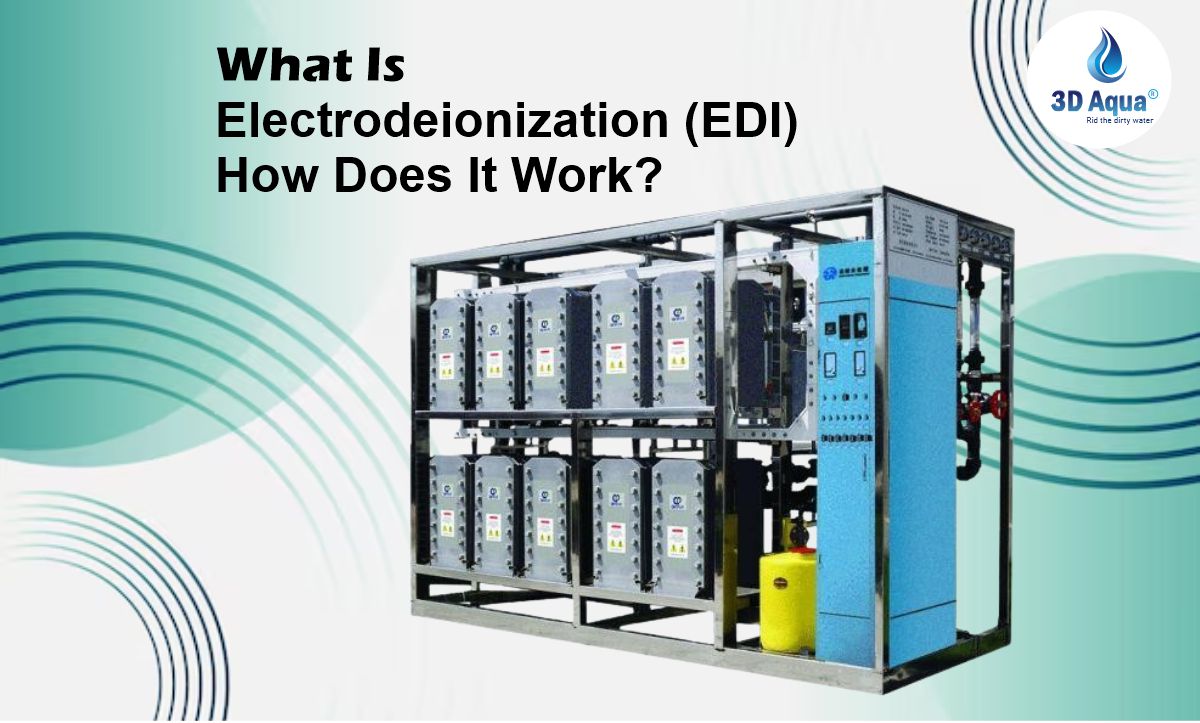

What Is Electrodeionization (EDI) and How Does It Work?

As the demand for high-purity water increases across sectors like pharmaceuticals, electronics, biotechnology, and power generation, advanced water treatment technologies have become more important than ever. One such cutting-edge technology is Electrodeionization (EDI)—a revolutionary method for producing ultra-pure water without the use of harsh chemicals.

At 3D AQUA Water Treatment Company, we integrate EDI technology into our advanced water purification systems to ensure consistent performance, high purity, and sustainable operations. In this comprehensive guide, we’ll explore what Electrodeionization is, how it works, key components, benefits, applications, and why it’s becoming the preferred choice for industries seeking ultra-pure water solutions.


What Is Electrodeionization (EDI)?

Electrodeionization (EDI) is a water purification process that removes ionized and charged species—such as salts, minerals, and other impurities—from water using a combination of ion exchange resins, ion-selective membranes, and a direct current (DC) electric field.

Unlike traditional ion exchange systems that rely on chemical regeneration using acids and alkalis, EDI uses electricity to continuously regenerate the resins. This not only improves operational efficiency but also makes the system eco-friendly, cost-effective, and maintenance-friendly.

Key Characteristics of EDI:

  • Uses no chemicals for regeneration
  • Operates continuously without interruption
  • Produces water with resistivity above 16 MΩ·cm
  • Commonly integrated after reverse osmosis (RO) for final polishing

Understanding the EDI Process

To fully understand how EDI works, it’s helpful to break down its core components and mechanisms:

1. Electric Field and Ion Movement

The EDI process begins by applying a direct current (DC) through the system. This electrical potential creates an electromotive force that moves positive ions (cations) toward the cathode (negative electrode) and negative ions (anions) toward the anode (positive electrode).

Inside the EDI module, ion exchange resins and ion-selective membranes direct these charged particles out of the purified water stream and into adjacent concentrate compartments where they are flushed away.

2. Ion Exchange Resins

Resins inside the EDI module play a dual role:

  • Capturing remaining dissolved ions that pass through pre-treatment steps (usually RO)
  • Facilitating ion movement toward the respective electrodes

These resins are continuously regenerated in situ by the electrical current, eliminating the need for external chemical regenerants.

3. Ion-Selective Membranes

Each EDI module contains alternating layers of:

  • Cation exchange membranes (CEMs) – allow only positive ions to pass
  • Anion exchange membranes (AEMs) – allow only negative ions to pass

These membranes guide the ions into concentrate streams, leaving the purified water in the central compartment.


Benefits of Electrodeionization

At 3D AQUA, we design and install customized EDI systems that offer unmatched advantages over traditional deionization methods. Let’s explore the key benefits:

✅ 1. Chemical-Free Operation

One of the biggest advantages of EDI is that it eliminates the need for acid and caustic chemicals used in traditional deionizers. This:

  • Reduces chemical storage and handling risks
  • Lowers operational costs
  • Promotes sustainable and green practices

✅ 2. Continuous and Consistent Purification

EDI systems operate continuously, providing a steady stream of ultra-pure water. There’s no need for downtime due to chemical regeneration, which ensures higher plant uptime and uninterrupted operations.

✅ 3. Ultra-Pure Water Production

EDI can produce water with:

  • Resistivity > 16 Megohm-cm
  • Silica levels < 0.1 ppm
  • TOC (Total Organic Carbon) < 50 ppb

This level of purity is suitable for high-precision industries like semiconductors, pharmaceutical manufacturing, and biotechnology.

✅ 4. Compact and Modular Design

Compared to large deionization systems, EDI modules are compact and space-efficient. They can be easily integrated into existing setups without requiring extensive plant modifications.

✅ 5. Lower Operating Costs

With no chemical purchases, fewer maintenance shutdowns, and minimal operator intervention, the overall operating cost of EDI systems is significantly lower over the long term.


Applications of Electrodeionization (EDI)

Electrodeionization is used across many sectors where high-purity water is essential. Let’s look at some industries that benefit from this advanced technology:


1. Pharmaceutical and Biotechnology Industries

Pharma-grade water must comply with strict standards such as USP, EP, and JP. EDI ensures:

  • Reliable conductivity control
  • Bacteria-free operation
  • Regulatory compliance

3D AQUA supports pharmaceutical clients with validation documents, installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ).


2. Semiconductor Manufacturing

Semiconductor production demands water free from:

  • Ionic contaminants
  • Silica
  • TOC

EDI removes these trace contaminants to deliver ultra-pure water (UPW) for wafer cleaning and fabrication. 3D AQUA systems are cleanroom-compatible and designed for 24/7 uptime.


3. Power Generation

Steam turbines require demineralized boiler feedwater to prevent scale formation and corrosion. EDI provides the final polishing stage after reverse osmosis, resulting in:

  • Improved turbine efficiency
  • Longer equipment lifespan
  • Reduced blowdown and water waste

4. Laboratories and Analytical Testing

Laboratories require Type I water for experiments, rinsing, and equipment operation. EDI systems from 3D AQUA deliver consistent water quality ideal for:

  • Spectroscopy
  • Chromatography
  • Biochemical analysis

5. Cosmetic and Food Industries

These sectors require microbial-safe and mineral-free water for formulation, cleaning, and product consistency. EDI provides a non-chemical solution for water purification that meets hygienic standards.


Integrating EDI with Existing Water Treatment Systems

Most EDI systems are installed after reverse osmosis (RO) units. Here’s how a typical integration looks:

🔹 Pre-Treatment

Before entering the EDI module, water must be free from:

  • Suspended solids (via multimedia filters)
  • Chlorine/chloramines (via activated carbon)
  • Scale-forming minerals (via softeners)

This ensures longer life for membranes and resins.

🔹 RO-EDI Combination

Reverse osmosis removes 95–98% of total dissolved solids (TDS). EDI takes over for the final polishing, delivering ultra-pure water without chemicals.

🔹 Automation and Monitoring

3D AQUA systems include:

  • Touchscreen PLC panels
  • Real-time conductivity sensors
  • Alarm systems for deviation detection
  • Remote monitoring options

Operators can view system status, adjust flow rates, and initiate cleaning cycles with ease.


Maintenance and Service Support by 3D AQUA

While EDI is low maintenance, routine inspection and service ensures optimal performance. We offer:

  • Preventive maintenance contracts
  • Resin and membrane replacement services
  • On-call support and emergency repairs
  • Operator training and documentation

Our field service teams are available in 1050+ cities across India and 9 international locations.


Real-World Example: EDI System for a Biotech Facility in Hyderabad

Client Challenge: Required ultra-pure water with <0.1 µS/cm conductivity for enzyme synthesis
3D AQUA Solution: 2-pass RO + EDI System with 3 m³/hr capacity
Result: Achieved 18 MΩ·cm water purity, continuous operation without chemicals
Bonus: Reduced operating cost by 42% compared to legacy DI plant


Why Choose 3D AQUA for Electrodeionization?

With over a decade of expertise, 3D AQUA provides end-to-end solutions for water and wastewater treatment. Our EDI systems are:

  • ISO 9001:2015, ISO 14001:2015, and CE Certified
  • Manufactured in Delhi NCR (Okhla & Noida)
  • Backed by custom engineering, installation, training, and service

Whether you’re a pharmaceutical lab, power plant, or electronics manufacturer, we tailor the right EDI system to match your quality and capacity requirements.


Advanced Technical Insights into Electrodeionization (EDI)

📌 The Science Behind EDI

Electrodeionization works on the principle of electromigration—the movement of ions under the influence of a direct current (DC) electric field. Here’s a more detailed look at what happens inside an EDI module:

  • Ion exchange resins serve as carriers to attract dissolved ions (like Na⁺, Ca²⁺, Cl⁻, SO₄²⁻) from water.
  • As DC voltage is applied, ions are pulled from the water stream into adjacent concentrate chambers.
  • The membranes only allow certain ions to pass in specific directions, ensuring targeted removal.
  • Simultaneously, the resins regenerate themselves continuously due to the electric field—no downtime or chemicals needed.

This allows for steady-state operation with minimal operator involvement.


How EDI Compares with Other Water Purification Technologies

Understanding how EDI stacks up against other methods is critical for decision-making:

FeatureEDIConventional Ion ExchangeReverse Osmosis (RO)Distillation
Chemical UseNo chemicalsAcid and caustic requiredNo chemicalsHigh energy use
Purity>16 MΩ-cm~10-15 MΩ-cm1–2 MΩ-cmUltra-pure
Continuous OperationYesNo (regeneration cycles)YesNo (batch-based)
Operating CostLow (after setup)Medium (chemical cost)MediumHigh
Environmental ImpactLowMedium (chemical waste)Medium (brine waste)High (energy-intensive)

Conclusion: EDI combines the purity of distillation, the simplicity of ion exchange, and the chemical-free advantage of RO—making it the most sustainable choice for long-term use.


Sustainability Benefits of EDI Systems

In a world increasingly focused on green solutions, EDI shines as a sustainable, eco-conscious technology:

🌱 1. Zero Chemical Discharge

Unlike conventional systems that generate acidic or alkaline waste during resin regeneration, EDI avoids these altogether.

♻️ 2. Lower Energy Consumption

EDI uses less energy than distillation or multi-effect evaporation, particularly when paired with energy-efficient RO systems.

💧 3. High Recovery Rate

EDI can help achieve up to 95% water recovery when integrated into a closed-loop system, minimizing water loss.

🌍 4. Long-Term Environmental Benefits

By eliminating chemical handling, reducing maintenance needs, and conserving water, EDI systems help industries:

  • Comply with ESG (Environmental, Social & Governance) goals
  • Obtain Green Building and ISO 14001:2015 certifications

Customization Options by 3D AQUA

No two industries are alike, and neither are their water needs. 3D AQUA offers tailor-made EDI systems based on:

✔ Flow Rate Requirements

From small 0.5 m³/hr units for labs to 30+ m³/hr plants for industrial campuses.

✔ Water Quality Targets

Whether you need Type I lab-grade water, USP-quality water, or low-silica boiler feed water, we fine-tune:

  • Resin type and quantity
  • Membrane specifications
  • Operating pressure and voltage
  • Pre- and post-treatment integration

✔ System Redundancy

For industries that cannot afford downtime (pharma, semiconductors), we offer redundant EDI trains and auto bypass features.

✔ Modular Design

Our compact, skid-mounted systems are plug-and-play and fit easily into existing utility rooms or rooftops.


Safety and Compliance

3D AQUA builds every EDI system to conform with the highest safety and regulatory standards:

  • GMP-compliant construction
  • Food-grade components (for pharma/food applications)
  • CE-certified electronics and components
  • ISO 9001:2015 Quality System

Additionally, we provide complete documentation for regulatory audits, including:

  • IQ/OQ/PQ protocols
  • Validation reports
  • SOPs and maintenance manuals

Future of EDI and Smart Water Management

As water scarcity becomes a growing issue, EDI is evolving with:

  • AI-based monitoring for predictive maintenance
  • IoT-enabled control panels for remote access
  • Hybrid setups combining EDI + UV + RO + NF for tailored needs
  • Battery-backed EDI systems for critical infrastructure

At 3D AQUA, we’re investing in the future of smart water purification, helping industries and communities adapt to the demands of Industry 4.0.


Case Studies: Real-World EDI Projects by 3D AQUA

🏭 1. Pharma Company – Ahmedabad

  • Challenge: Meet strict USP purified water standards
  • Solution: RO + EDI skid with automatic flushing, 2 m³/hr
  • Result: Reduced cleaning downtime by 80%, consistent output at 18 MΩ·cm

⚡ 2. Power Plant – Nagpur

  • Challenge: Boiler feedwater with very low silica
  • Solution: Two-stage RO + EDI + UV disinfection
  • Result: Near-zero scaling, higher turbine efficiency

💻 3. Electronics Unit – Bengaluru

  • Challenge: Water for chip cleaning and rinsing
  • Solution: Redundant RO + EDI lines with SCADA control
  • Result: 24/7 operation with real-time conductivity tracking

Conclusion

Electrodeionization (EDI) is a cutting-edge, chemical-free, and sustainable solution for producing ultra-pure water. With features like continuous regeneration, low maintenance, and high water purity, it outperforms traditional deionization systems in both performance and cost-efficiency.

3D AQUA offers customized, reliable, and fully integrated EDI systems built for India’s industrial and commercial sectors. Whether you’re upgrading an existing plant or planning a new installation, we have the technical expertise and service support to help you succeed.


Interested in Our EDI Systems?

Let our experts design a custom Electrodeionization solution for your application.

📞 Call Us: +91-6262629090
📧 Email: info@3daqua.in
🌐 Website: www.3daqua.in
